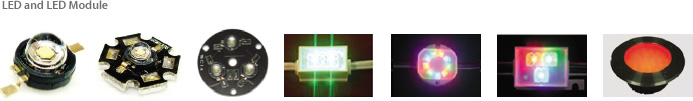

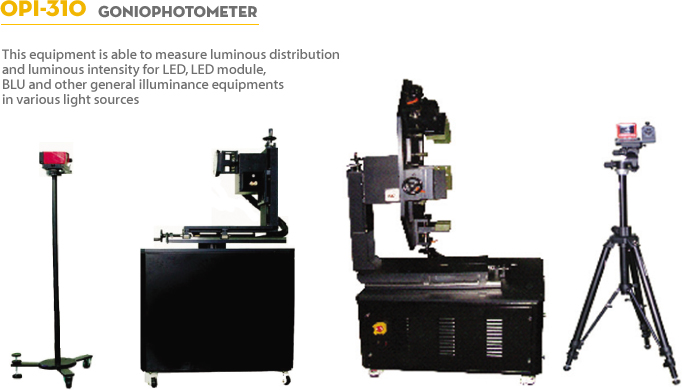

    • Measurement for various light sources such as LED, LED mod-ule, BLU, LCD, general illuminance equipments
    • Measurement objects : Max. 700mm/30kg(adjustable)
    • Targeted objects - distance between sensors : 0.5 ~ 30m
    • Accurate calculation for distance by laser sensor(error is less than 1mm) and aligning targeted objects
    • Built-in high resolution, broad band luminous intensity meter
    • Automatic detection function for hardware and emergency stop button
    • Automated horizontal range() -135 ~ +135
      Minimum horizontal angle resolution 0.3
      Minimum axial range() 0 ~ 360
      Minimum axial angle resolution 0.1
      Computer interface RS232
      Linear positioning stage travel 25.4mm
      Dimensions 56.7cmX32.7cmX26cm
      Enclosure lightproof enclosure
      Scan time Within 20 seconds
      Range of wavelength Visible(Option UV/IR)
      Sensor V() Filter Si Photo diode
      Sensing hole size 100 mm2
      Range of Current 0 ~200 mA(Option 0~1A)
      Power requirements 220V, 50/60Hz
