MEASUREMENT ITEMS | JUNTION TEMPERATURE | THERMAl RESISTANCE |
Range | 0 ~250 | 0/W ~999.9/W |
Accuracy | 0.5 | 0.5/W |
Resolution | 0.1 | 0.5/W |
Transient State | Rising Falling Impulse |
|
Sampling rate | Max. 1 MHz |
SYSTEM SPECIFICATIONS | |
Analog Output | 4MS/sec |
Analog Input | 1MS/sec |
Channel | Input 2 ch |
Resolution | 22bit |
Source Current | 1A |
Frequency | 200 KHz |
Pulse Width | 1 sec ̻ |
Thermocouple | T-type |

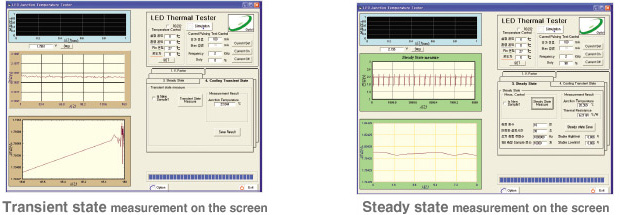

GUI & Hardware interface program |
