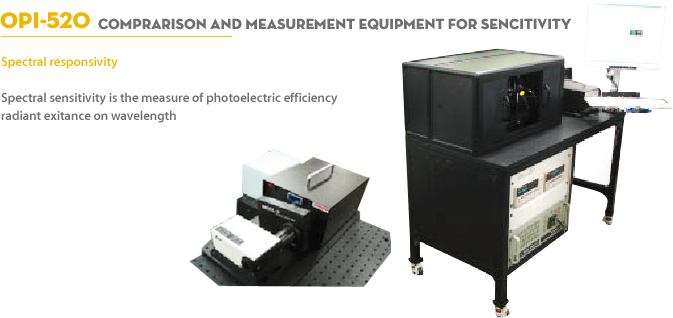

HOME > Product > LED > Solor Cells > opi-520
Measurement objects : solar cell, silicon diode
channel : 4ch automatic measurement
This equipament was developed by technologies transferred from Korea Research Institute of Standards and Science
Superior measurement repeatability and low inaccuracy

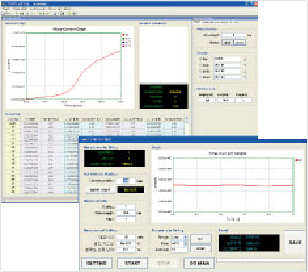

Support for user-friendly software environments
Compact-sized product
Spectral range : 350nm~1000nm
Bandwidth(FWHM) : 1.5nm~3nm
Output power : > 100nW(depending on wavelength)
Light stability : < 0.05% rms for 60 seconds
Beam focusing at detectors : F/10 or slower
Minimum spot size at detectors : < 2nm diameter
Comparison uncertainty(k=2) : < 0.5%
