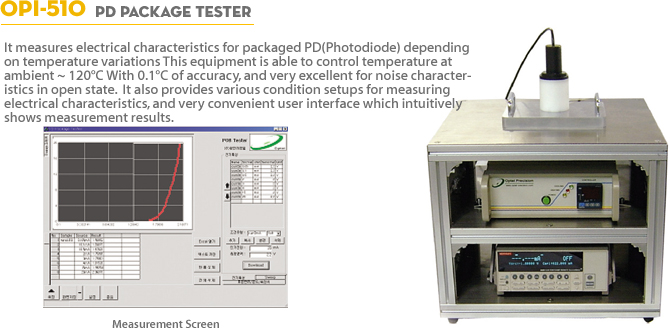

    • opi-510
      • Dark Current measurement
      • V-I Sweep measurement
      • Temperature dependency measurement of PD
      • Accurate and reliable measurement with use of
            Keithley meter
      • Accurate and rapid temperature control by water
            -cooling-type TEC(Normal temp ~ 120C)
      • Reduced and lowed noise by water cooling TEC
      • Easy-to-use measurement JIG
      • Optimized interface for user's convenience
      • Various measurement condition, Date storing and output
           function for vari-ous format.(Excel, Text)
      • Reporting formats based on requirement of users
    • ELECTROMETER Heater controller
      (1) Dark Current Measurement resolution : 100aA
      (2) CurrentSourceRange: 1pA ~ 100mA
      (3) Current Source Accuracy : (1.0% + 10fA)
      (4) CurrentMeasurementRange : 1pA ~ 20mA
      (5) Current Measurement Accuracy : (1.0% + 7fA)
      (6) VoltageSourceRange : 200mV ~ 200V
      (7) Voltage Source Accuracy : (0.02% + 600uV)
      (8) Voltage Measurement Accuracy: (0.012% + 350Uv)
      (9) ResistanceMeasurementRange : 2 ~20T
      (10) Pass/fail limit test as fast as 500us per point
      (1) Temperature range : RT ~ 85)
      (2) Temperature resolution of 0.1
      (3) Control stability of up to 0.2
      SAMPLE HOLDER Industrial Personal Computer for Control
      (1) On-demand Manufacture by Sample Type
      (2)Barrel for dark state(Dark room) with adapter
      (3) Temperature controlled by TEC: Water-cooling
      (1) Pentium-4 3.2 GHz processor
      (2) Memory : 1GB RAM
      (3) HDD : 200G
      (4) 17 inch TFT LCD monitor
      Dimension : 420mm(W) x 424mm(D) x 400mm(H)
