  • 4가지 종류의 램프에 대한 결과치를 실시간 개별 모니터링하고 자동으로 광특성을 측정하여 광속 및 색온도 유지율, 수명을 시험


  • size

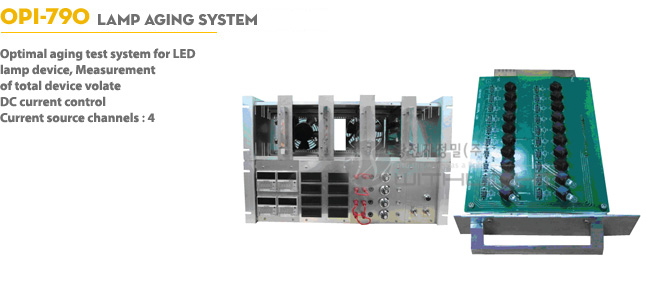

  • ㆍOptimal aging test system for LED lamp device
  • ㆍMeasurement of total device voltage
  • ㆍDC current control
  • ㆍCurrent source channels:4
  • ㆍAll DUT are connected in serial mode
  • ㆍ20 DUTs per Board
  • ㆍAccurate timer installed [9999hours]
  • ㆍWhile aging,if there are any fail DUT, the failed DUT can be switched off.

  • Power Control Mode
  • ㆍCC : Constant current DC control

Output Characteristice

  • ㆍCurrent range : 200mA @ 50V
  • ㆍAccuracy : 〈0.1% of full scale
  • ㆍSrability : 〈0.1%/h after 30 min. warming up

  • Dimension

  • ㆍ500mm[W] x 400mm[D] x 500mm[H]

  • Weight

  • ㆍ〈10Kg

  • Line Voltage

  • ㆍ220V 50/60Hz
