| Specifications | Source Range | Measurement | |||
| Range | Accuracy | Resolution | |||
| Peak Wavelength | λp | I:0~1A/10A | 350~830nm | ±0.5nm | 0.3nm |
| Dominant Wavelength | λd | I:0~1A/10A | 380~780nm | ±0.5nm | 0.3nm |
| luminous Intensity | IV | I:0~1A/10A | 10~10000mcd | < 5% | 0.1mcd |
| Radiant Intensity | Ie | I:0~1A/10A | 0.05~100mW/sr | < 5% | 0.1μW/sr |
| CIE Color Coordinates | Cx, Cy | I:0~1A/10A | 0~0.7 | ±0.005 | 0.002 |
| Half With | Hw | I:0~1A/10A | 1~1050nm | ±0.5nm | 0.3nm |
| Reverse Current | Ir | V:0~200V | 0~100μA | ±(0.03%+6nA) | 1μA |
| 100μA~1A | ±(0.22%+570uA) | 10μA | |||
| Reverse Voltage | Vr | I:0~1A/10A | 0~2V | ±(0.02%+300uV) | 10μV |
| 2~200V | ±(0.02%+10mV) | 1mV | |||
| Forward Current | If | V:0~200V | 0~100μA | ±(0.03%+6nA) | 1nA |
| 100μA~1A | ±(0.22%+570uA) | 10μA | |||
| Forward Voltage | Vf | I:0~1A/10A | 0~2V | ±(0.02%+300uV) | 10μV |
| 2~200V | ±(0.02%+10mV) | 1mV | |||
| *Luminous Flux | Φv | I:0~1A/10A | 0.01~100lm | < 5% | 0.001lm |
| *Radiant Flux | Φe | I:0~1A/10A | 50μW~10W | < 5% | 1μW |
| Applications | CCT(Tc),CRI(Ra),Optical Efficacy(K) | ||||

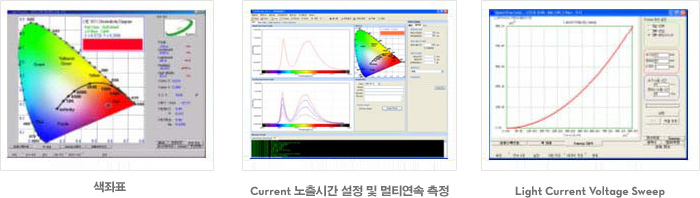

| L-I-V Sweep | Light-Current-Voltage Sweep curve Measurement | ||||
| Power source | Max 1~10A, Pulse mode support (Optional) | ||||
| Spectrum ranage | UV, UV~Visible, Visible, Visible~IR, IR, UV~IR ( Selectable ) | ||||
| Optical Power | 0.0001 ~ 100 cd (Selectable) | ||||

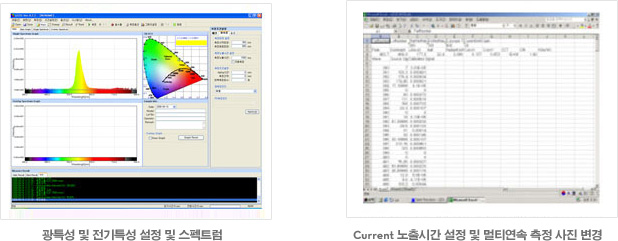

| Data Storage Format | Excel(*, CSV )/TEXT/IMAGE(BMP) | ||||
| Built-in PC | Windows XP, Pentium M 1.6G Hz , RAM 512 MB, HDD 80G, 17” LCD Monitor | ||||
| Power | 100~230 VAC, 50/60 Hz | ||||
| Available Temperature/Moisture | 5~40℃/Less than 95% relative, non-condensing | ||||
