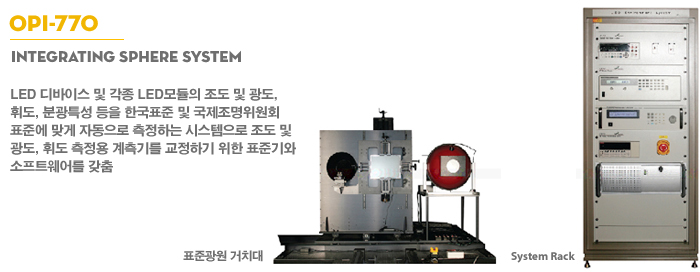

  • opi-770

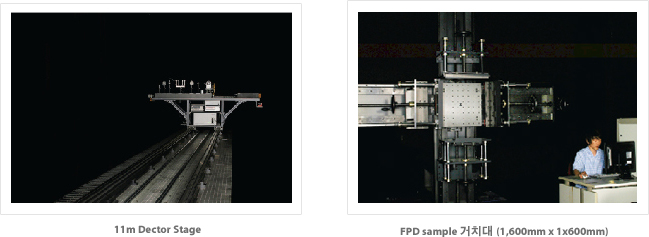

  • 11m dector stage, FPD sample 거치대
  •

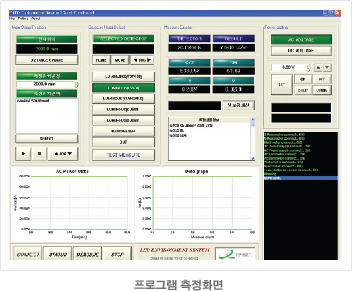

  • 프로그램 측정화면
  •
  •  측정대상
  •
  • LED devices, modules, lamps, and VMS modules
  • 광파워 특성 : 조도(illuminance), 휘도(luminance), 광도(luminous intensity)
  •
  • 측정항목
  •
  • 분광특성 : 최고파장, 중간파장, 중심파장, 주파장, 반측폭, CIE1931 색좌표 CIE1976 색좌표, 상-관색온도, 연색지구,
       색재현성(Color Gammut)
  •
  • Specification
    Spectral Range 350~780mm
    Spectral Resolution 0.2nm
    Data Point Interval 0.05nm
    Wavelength accuracy ±0.1nm
    Wavelength reproducibility ±0.05nm
    Scan time 10~100msec/nm
    Focal Length 320mm, f/4.6
    PC Interface Standard RS-232 & R5-485
    Integrating Sphere 450mm dia.
    Flatness accuracy > 0.1mm
    Max, Sample Weight 80kg
    Optical Rail 1,300mm
    DUT jig size Max. 1,500mm x 1,500mm
    Dimension 4,200mm[W] x 15,730mm[L] x 2,740mm[H]
    Power requrements 220V, 50/60Hz
